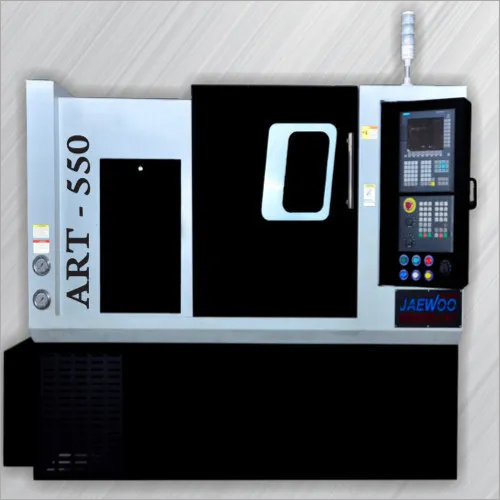

ART 550 CNC Turning Machine

Next > >

Send Inquiry

Product Code : 04

Brand Name : JAEWOO CNC

Price And Quantity

Minimum Order Quantity
1 Piece
Price
1490000 INR/Piece

Price Range
950000.00 - 2000000.00 INR/Piece

Product Specifications

Product Type
CNC Chucker Machine
General Use
Industrial use

Material
Metal
Type
Turning Center, Horizontal

Weight (kg)
4000 Kilograms (kg)
Computerized
Yes

Automatic
Yes
PLC Control
Yes

Bar Feeder
Yes
Power Source
Electric

Power Consumption
15 Kilowatt (kW)
Rigidity
High

Voltage
240-480 Volt (v)
Motor
AC Motor

Spindle Speed
3500 RPM
Dimension(L*W*H)
Customize Centimeter (cm)

Feature
High Speed
Color
White

Product Description

ART 550 CNC Turning Machine comes with hydraulic tail-stock, 200m hydraulic chuck, and an admit between middle distance of around 550mm. It is engineered for jobs that need the support of tail stock and various tools. This machine has a Multi torque tube design and is ideal for hardware as well as automotive components. In order to guarantee perfection in the turning and allied operations, this is well featured for A26 cartridge type spindle & Roller linear motion guide ways. The ART 550 CNC Turning Machine is effective for excels, pinions, motor

Payment Terms :

    cheque
    Rtgs
    Bank transfer
    Online

covers, gears, ceiling fan shaft, shafts, pins, armature, starter motor shaft, etc.

We mainly deal in local area

Specifications:

Bed / Tooling		Slant / Turret
Max. Swing diam. Over bed	Mm	550
Max. Swing diam. Over slide	Mm	250
Max length of work piece	Mm	500
Spindle bore	Mm	46
Spindle Type		A₂₆ Cartridge, Belt driven
Spindle Speed	Rpm	100-3500
Main motor power	KW	7.5/11
X Axis Travel	Mm	225
Z Axis Travel	Mm	550
X/Z rapid traverse	mm/min	20/20
Guide way Type		Linear motion (ROLLER)
Turret Type (Pragati)	Nos.	8 Position bi-directional
Tool Shank Siz	Mm	25x25
Tail Stock Sleeve Dia/ Travel	Mm	54/150
Chuck and Tail Stock clamping		Hydraulic
Internal Taper of Tail Stock Sleeve		MT4
Positioning accuracy X/Z	Mm	0.007
Repeatability X/Z	Mm	0.005
Net weight	Kg	4000 Approx.
CONTROL SYSTEM		Siemens 808D Advance
