CNC Turning Machine For LPG Gas Cylinder And Stove

Next > >

<< Previous

Send Inquiry

Product Code : 06

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces

Price
1050000 INR

Product Specifications

Product Type
CNC Chucker Machine
General Use
Industrial use

Material
Metal
Computerized
No

Automatic
No
Power Source
Electric

Power Consumption
7kw Kilowatt (kW)
Voltage
240-480 Volt (v)

Motor
AC Motor
Dimension(L*W*H)
Customize Centimeter (cm)

Feature
High Speed
Color
White

Product Description

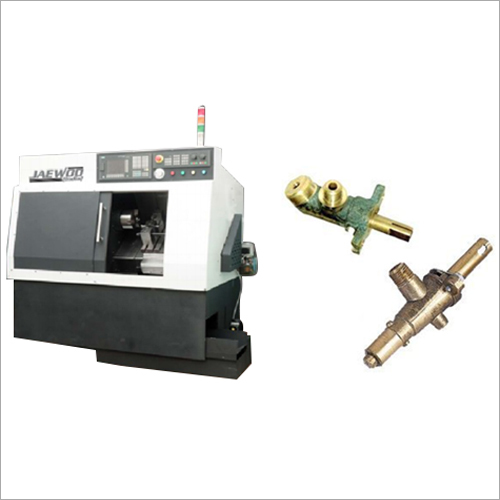

CNC Turning Machine For LPG Gas Cylinder And Stove is suitable for creating mark on LPG cylinder & gas stove valves. It has linear tool arrangement and 135mm hydraulic chuck, servo motors on both the axes which guarantees the precision needed in the bore of the valve & the Outer Diameter of the cock that has to get match with the bore so as to turn off the leakage of the gas. It works on around 3500rpm and provides first-class finish on the surface of the component. The CNC Turning Machine For LPG Gas Cylinder And Stove has Siemens 808d advanced control system, which makes it user-friendly. Moreover, the cycle time of the valve is around 14secs which means approx 250 per hour.

Payment Terms :

    cheque
    Rtgs
    Bank transfer
    Online

We mainly deal in local area

Specifications:

DETAILS	UNITS	SPECIFICATIONS
Bed type/ guide way type		Slant / linear
Max. Swing diam. Over bed	Mm	270
Max. Swing diam. Over slide	Mm	120
Max length of work piece	Mm	70
Spindle bore	Mm	22
Spindle Type		Cartridge, Belt driven
Spindle configuration		A24
Spindle Speed	Rpm	100-3500
Chuck Size	Mm / no.	135 / 3 jaws
Main motor power	Kw	3.7/5.5
X/Z travel	Mm	250/100
X/Z rapid traverse	mm/min	20/20
X/Z servo motor torque	Nm	4/4
Type of tool changer		Linear Tooling
No. of tool station		1-4 ( depending upon the job size)
Tool shank size	Mm	20 x 20
Clamping		Hydraulic Chuck
Positioning accuracy X/Z	Mm	0.007/0.007
Repeatability X/Z	Mm	0.004/0.004
Dimensions	Mm	1700x 1200x 1700
Net weight (approx.)	Kg	2050
CONTROL SYSTEM		Siemens 808D Advanced
